5555141-1
Manufacturer:
TE Connectivity
Mfr.Part #:
5555141-1
Datasheet:
Description:

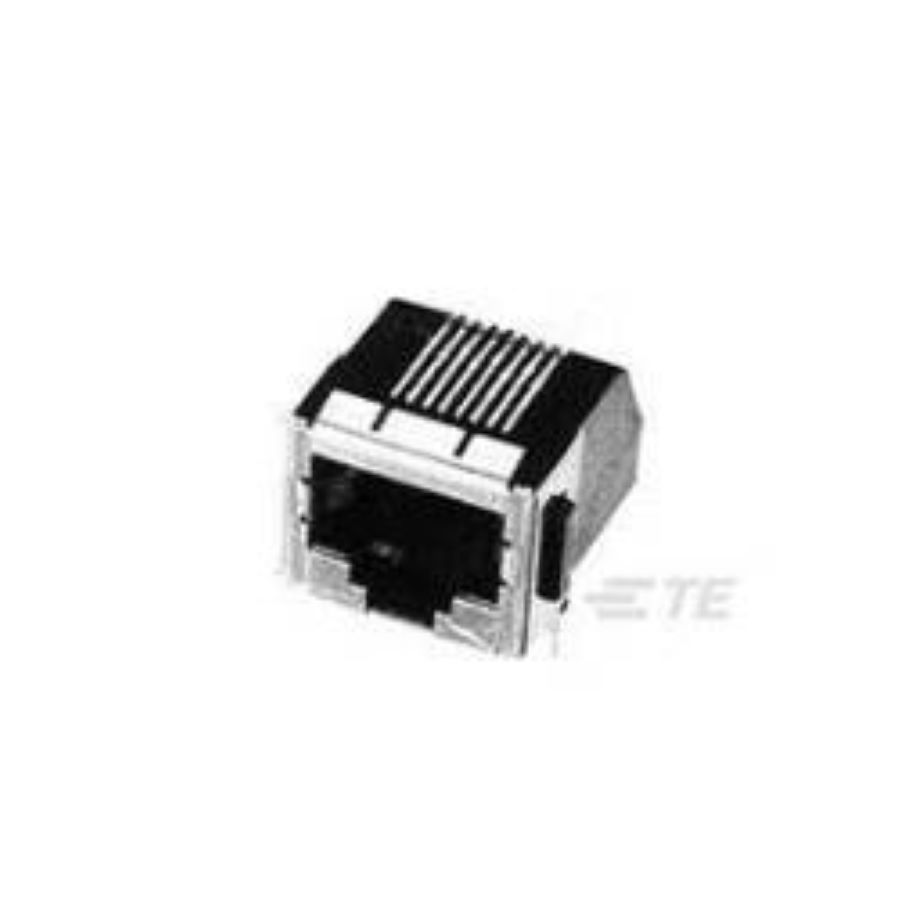

Modular / Ethernet Connectors Through Hole RJ45 Receptacle Current Rating:200 mA
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 12.57 mm |
| Packaging | Tray |
| RoHS | Compliant |
| Contact Plating | Gold |
| Current Rating | 200 mA |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Receptacle |
| Shielding | Shielded |
| Number of Contacts | 8 |
| Direction(Counting Sequence) | Down |
| Number of Positions | 8 |
| Housing Material | Polyester |
| Number of Ports | 1 |
| Circuit Application | Signal |
| Housing Color | Black |
| Number of Positions Loaded | 8 |
| Tail Length | 3.8 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Finish Thickness - Mating | 1.27 µm |
| Mounting Angle | Right Angle |
| Performance Category | Cat 3 |
| Accessory Type | |
| USOC Codes | RJ45 |
| Number of Positions/Contacts | 8P8C |
Stock: 510
Distributors
pcbx
pcbxUnit Price$1.55779
Ext.Price$1.55779
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.55779 | $1.55779 |
| 10 | $1.32272 | $13.22720 |
| 25 | $1.23963 | $30.99075 |
| 50 | $1.18044 | $59.02200 |
| 100 | $1.10166 | $110.16600 |
| 300 | $1.02814 | $308.44200 |
| 500 | $0.95952 | $479.76000 |
| 1000 | $0.89549 | $895.49000 |
